How to set up an integration between Digital Commerce and Google Shopping

Purpose and scope

This content is intended only for customers with an existing integration between Experlogix Digital Commerce and Google Shopping.

Read How do I configure and manage Google Merchant Center? for our updated integration process.

We recommend that if you have an existing integration, please update your integration using our new Google Merchant App before August 2026.

This is because Google will no longer support the Content API for Google Shopping from 18th August 2026; we had used this API to integrate Experlogix Digital Commerce and Google Shopping.

The integration between Digital Commerce and Google Shopping syncs your product catalogue with Google Merchant Center. Once synced, your store’s products can be included in Google’s free listings and promoted using Smart Shopping campaigns. Our built-in configuration tool guides you through creating a link between our software and Google Merchant Center, which allows you to use Google Shopping campaign ads with direct links to products in WebShop.

This feature guide explains in detail how to use our built-in configuration tool to integrate Experlogix Digital Commerce with Google Shopping.

This feature is only available as part of the Digital Marketing SmartPack. Contact our sales team for more information.

Key points

You need to follow this procedure once to set up an integration between Digital Commerce and Google Shopping.
You must have a multi-client account with an associated sub-account in Google Merchant Center.
This step by step guide is intended to help you highlight the key settings you need to set so that your Google Merchant Account is integrated successfully with Experlogix Digital Commerce. It does not provide detailed descriptions for every step needed to either create or use Google Merchant Center effectively. Read this Onboarding Guide - Sign up for Google Merchant Center¹, which has been been written by Google and is shared on an external site. Note that Experlogix Digital Commerce has no control over its contents.

Introducing terms and concepts used in this article

Term	Definition
Application Programming Interface	(API), which is an interface that allows two different computer systems interact with each other. It consists of a number of rules (also known as endpoints) that request data from the other system and receive and process responses from that system.
API key	a code used to identify and authenticate an application.
Enterprise resource platform	(ERP), a collection of your critical business operating systems, such as product, stock levels, financial, customers, suppliers and so on that run on the same platform.
Google Merchant Center	(GMC), a service offered by Google that allows you to add your product information to Google. Once this information is uploaded to Google, the service makes it available to your customers when they search for your products using Google.
Product feed	a structured description of your products that can be shared with other channels.
Uniform resource locator	(URL), the address of a website.

Step by step

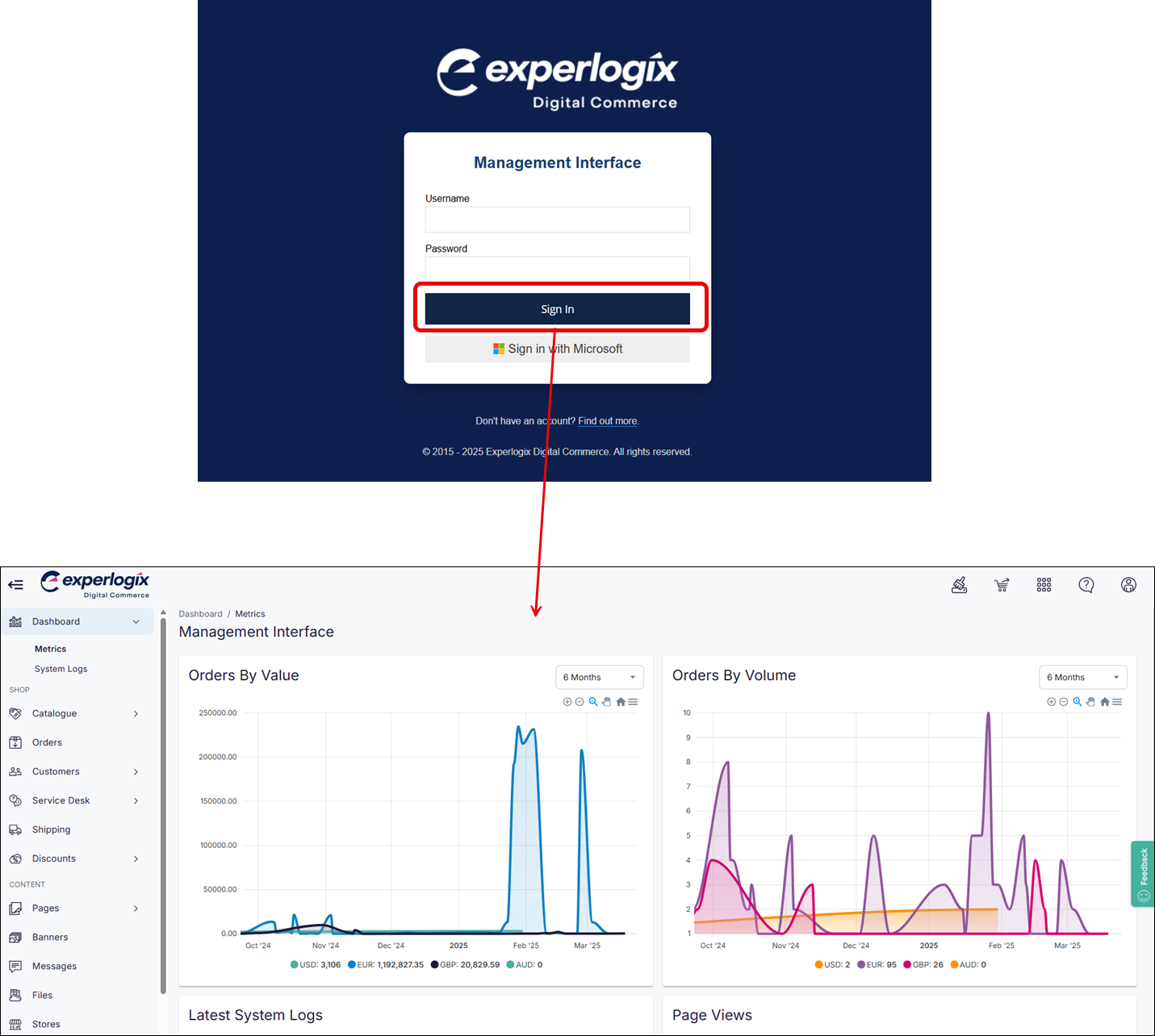

Log into Management Interface

Enter your username and password, and select Log in. This opens the Management Interface on your Dashboard.

Open Tools

Open

Click Tools under Configuration on the left side menu.

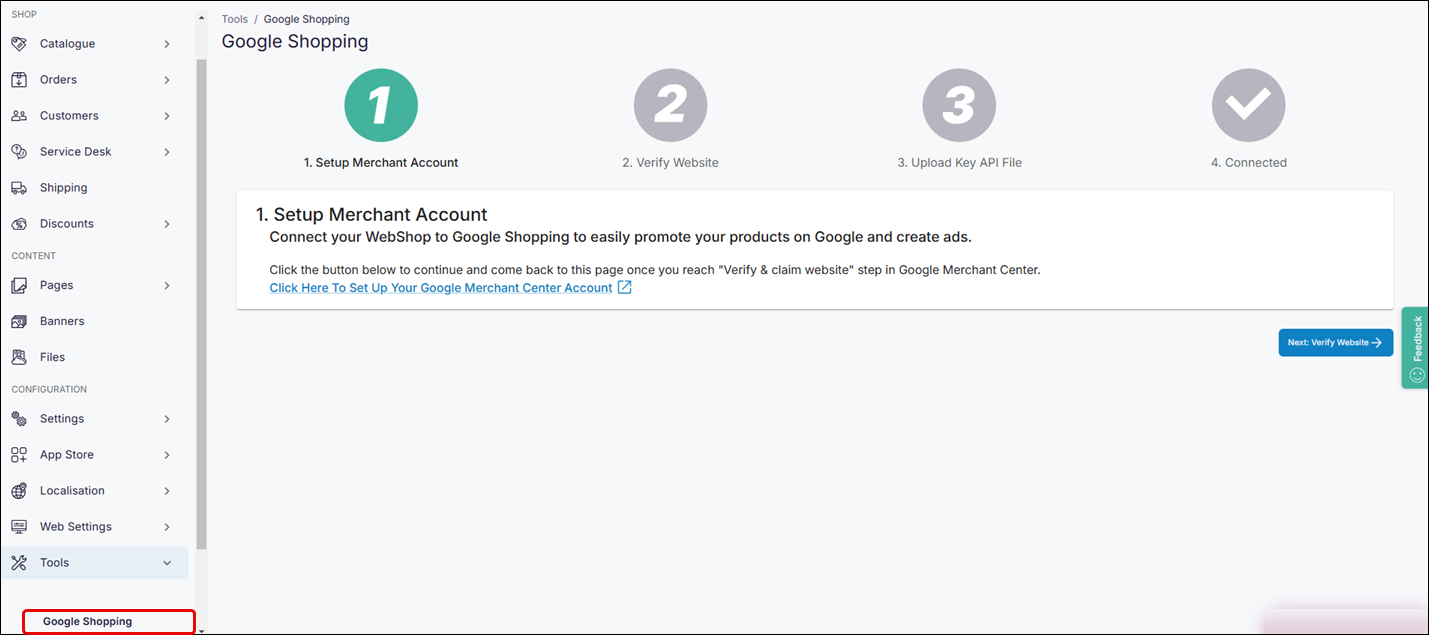

Select Google Shopping from the list of options. This opens the configuration tool that allows you to set up and configure the integration between Experlogix Digital Commerce and Google Merchant Center.

Key points

The configuration tool guides you through the 4-step process of integrating a Google merchant account and our platform:

Register with Google Merchant Center.
Link your Google merchant center with your WebShop.
Configure your product feed.
Finish configuring your Google merchant center account.

Follow steps in configuration tool

Step 1

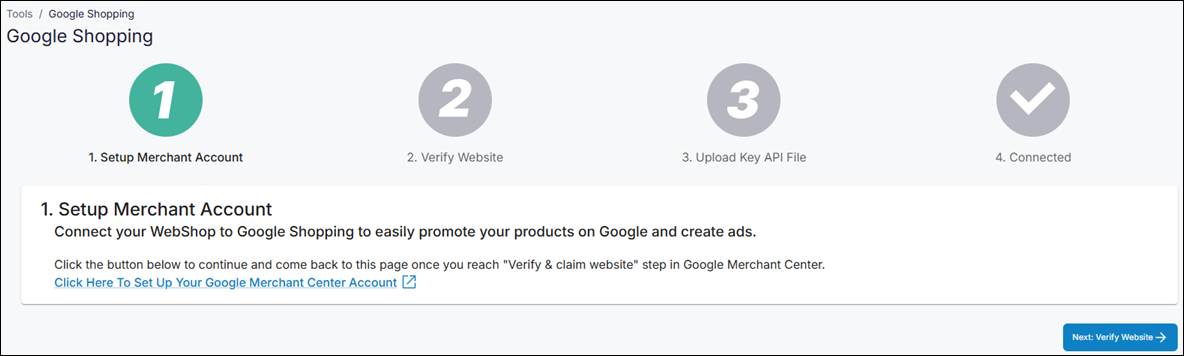

Set up Merchant Center account.

Click . This opens a new browser which allows you to create and configure a Merchant Center account.
Follow the directions in the new browser to set up an Google Merchant account.

Remember

You must create or use an existing multi-client account with an associated sub-account.
Select “On my Website“ to ensure that the checkout process is always carried out on WebShop.
Extra documentation can be found in these links, which are shared on an external site. Experlogix Digital Commerce have no control over the content of these guides.

After adding business information, enter the URL of your WebShop.
Select “Add an HTML tag or file“ to verify your WebShop.

Step 2

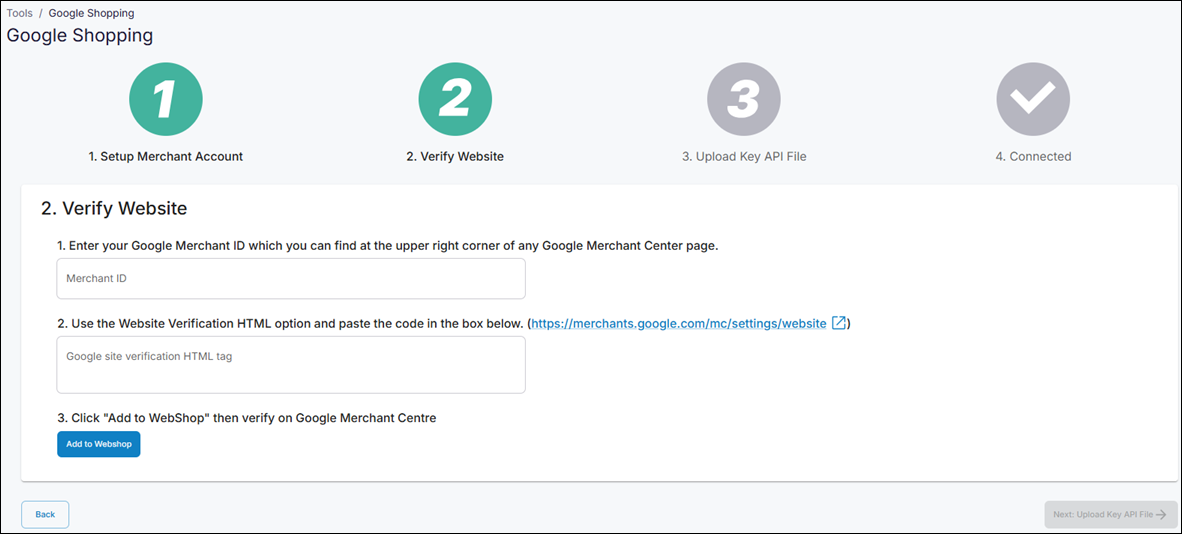

Verify Website.

Take note of your merchant ID, (typically found in the top right of the Google Merchant Center set up screen) and the HTML tag (typically found at the bottom of the Google Merchant Center set up screen).
Return to Management Interface.
Click “Next: Verify Website“. This opens the next screen in the configuration tool.
Copy the merchant ID into the field labelled Merchant ID.
Copy the HTML tag and paste it into the field labelled Google site verification HTML tag.
Click “Add to WebShop”.
Return to Google Merchant Center to claim and verify your WebShop.

An error message is returned if Google Merchant Center can not verify the website address you have entered. This may be because of one of the following reasons:

Your WebShop has not been switched on yet
You have entered incorrect data in the Merchant ID or Google site verification HTML tag fields.

Fix the error and try again.

Step 3

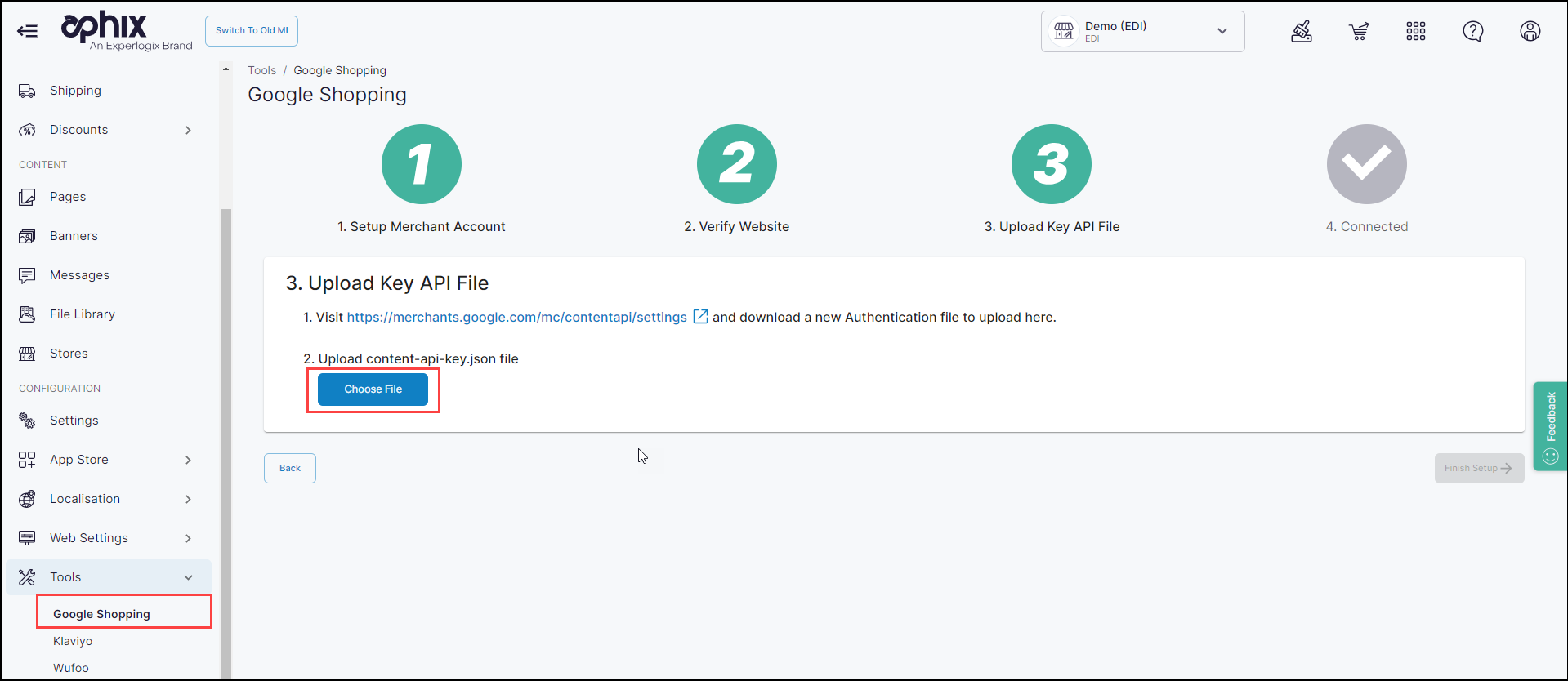

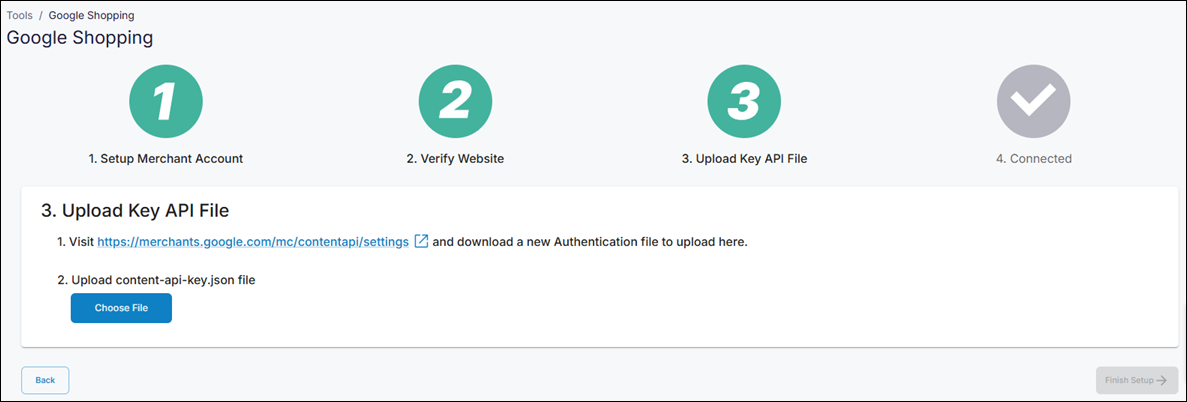

Upload Key API File

Return to Management Interface.
Click “Next: Upload Key API File“. This moves you to Step 3 in the configuration tool.
Click . This opens Google Merchant Center where you create a file (stored as a .json file) that authenticates and authorizes and links your Merchant ID to your WebShop.
Download the authentication file and save it on your computer.
Return to Management Interface.
Upload the file. This stores your authentication key on the Digital Commerce platform.

Step 4

Finish setup

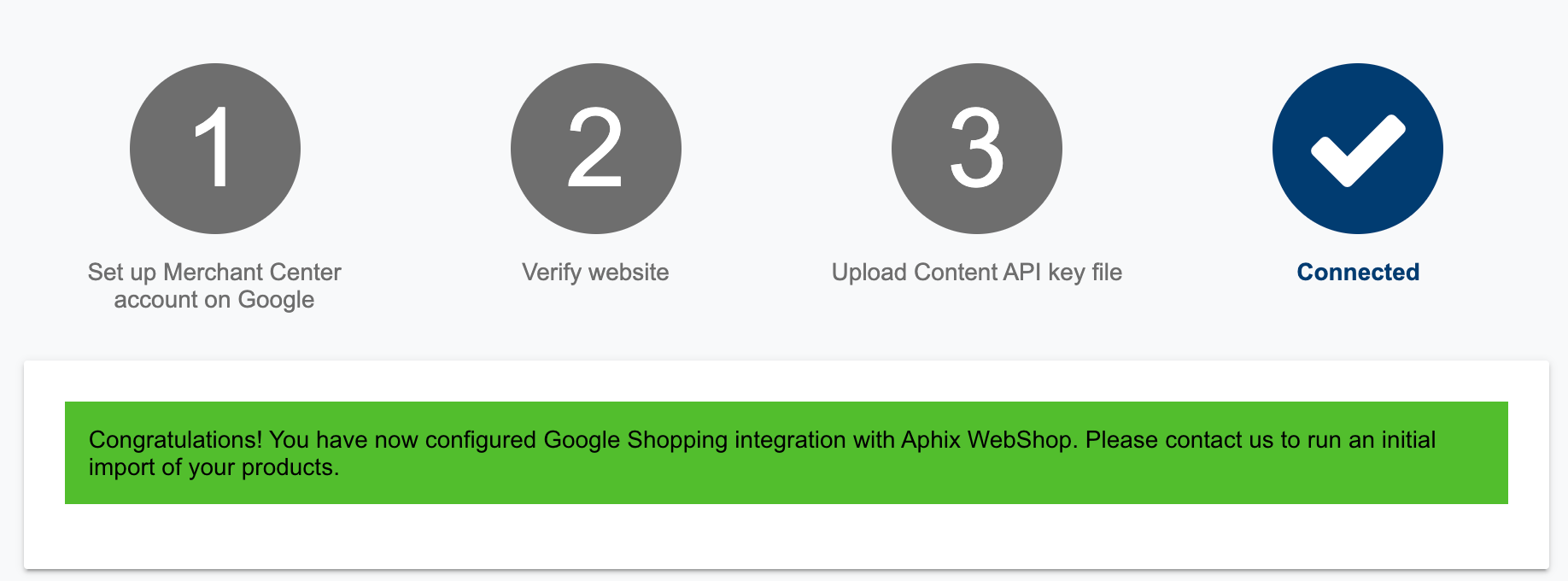

Click Finish Setup. This completes the authorization and authentication and establishes the link between your WebShop and your Google Merchant Center account.

A connection has been established between your WebShop and Google Merchant Center.

Configure product feed

Configure

Add products

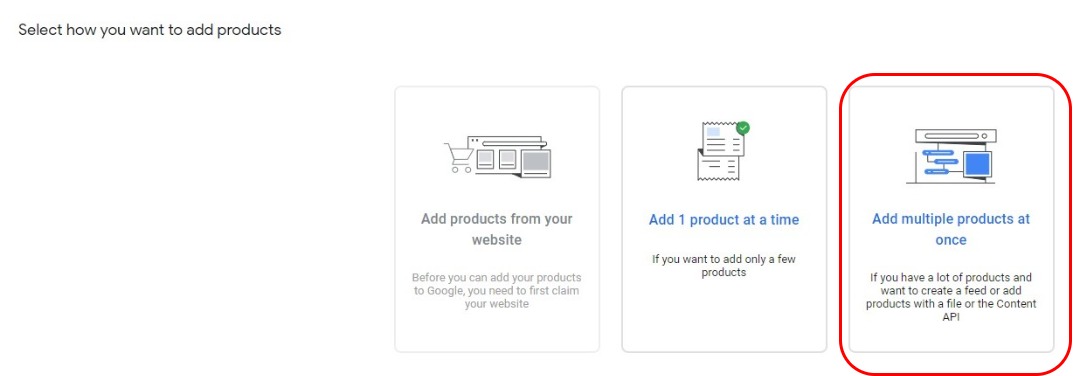

To create a product feed, select Add multiple products at once option.

You are presented with a set of three screens to complete product feed creation:

Enter basic information.

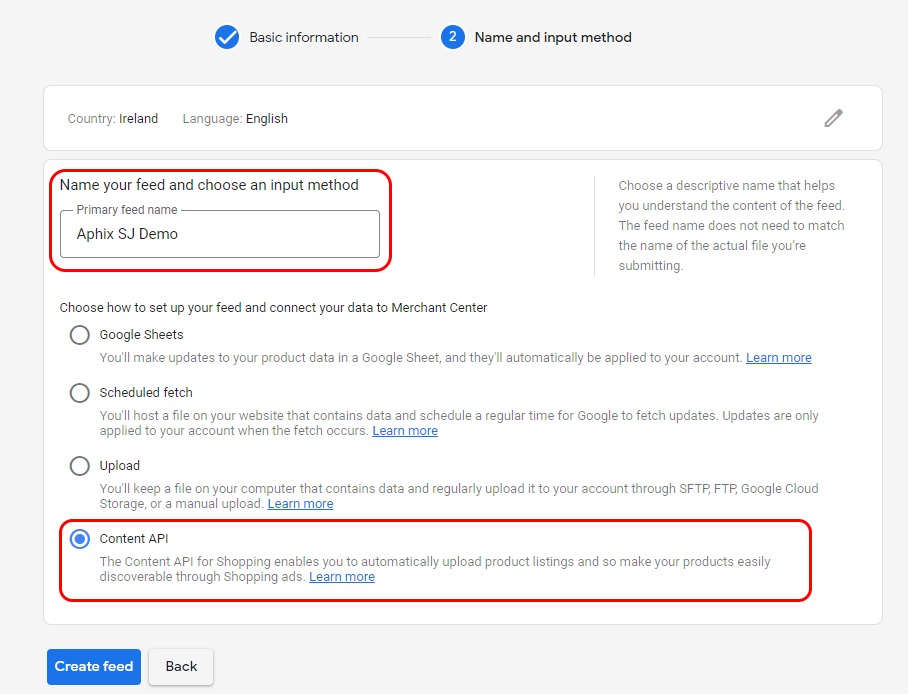

Define the product feed name and input method.
- Set the product feed name to the name of your WebShop.
- Select Content API. This allows you to set up an automatic product feed from your ERP via WebShop to your Google Merchant Center account, allowing you to quickly and easily avail of Google Shopping ads.

Click Create feed. This opens a screen inviting you to create an API key. An API key is an unique code used to authenticate a system or user, and allows secure interaction between your account in Google Merchant Center and your WebShop.

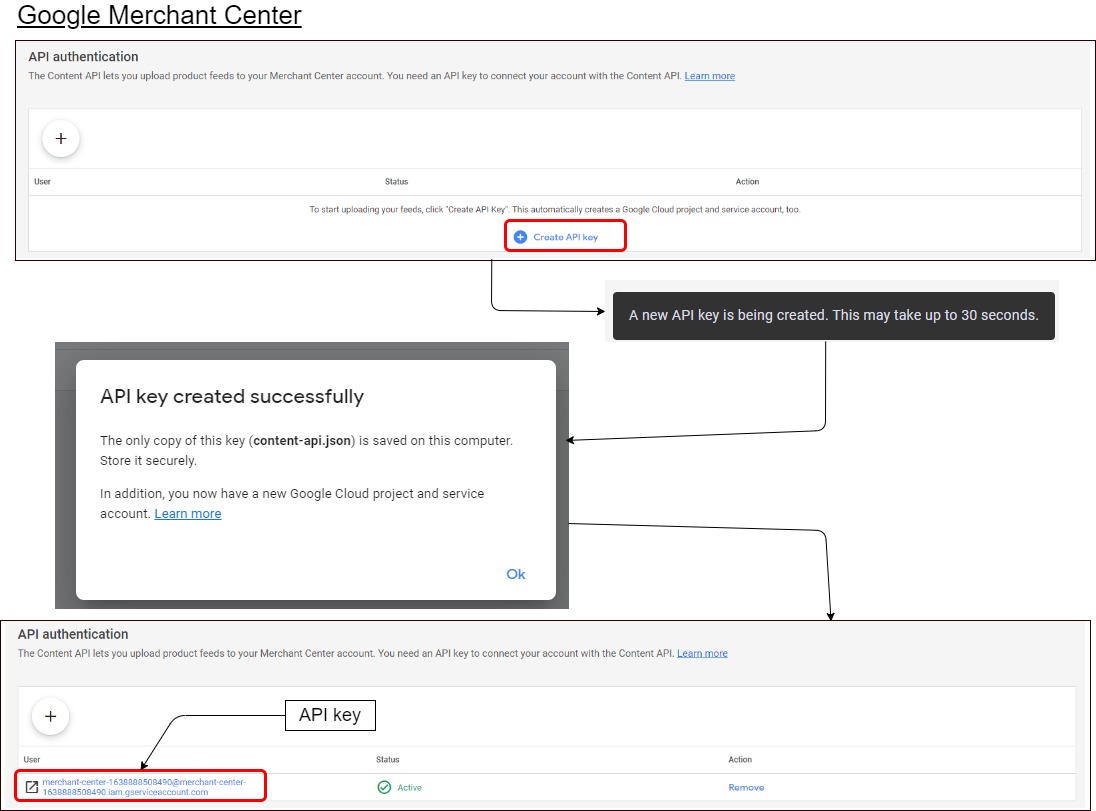

Click Create API key. The process to create an API key is initiated, and may take up to 30 seconds. The API key is automatically added to your Google Merchant Account and you are required to download it and store it on your computer. Typically, it is a file ending in .json.

Return to Management Interface.
Click Choose File and select the API key from where you have saved it on your computer.
Click Upload. This saves the API key.

An error occurs if Google Merchant Center can not verify the connection. If this happens, you have to return to Step 1 and carry out the steps again.

Read Why is the connection between WebShop and Google Shopping merchant account not established? for some advice on how to troubleshoot errors.

References

¹ External site: Onboarding Guide - Sign up for Google Merchant Center

² External site: (Google Merchant Center) Advanced Account Setup

³ External site: (Shopping Automation) Create sub-accounts for merchants - Google Ads Help
